It is the machine to process the primarily sawn lumber in the desired width. It adopts a caterpillar type so it is possible to produce products stably. It is an excellent endurance and suitable for cutting solid and tough lumber. In addition, it is applied with a screw feeding method whose outcome has a smoother surface than a band saw produces because they are processed with the circular saw. Therefore, it can control height precisely during cutting work.

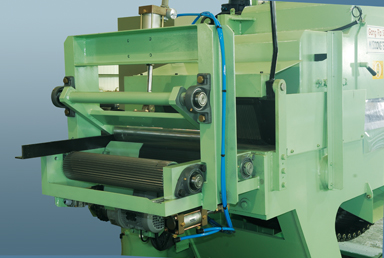

Automatic feeder

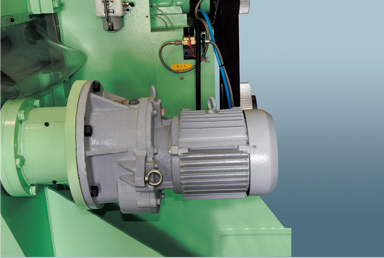

No speed gear transmission
Cooling oil supply unit

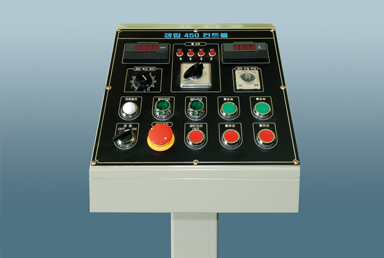

Portable control panel

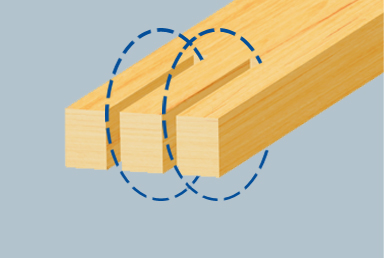

Lumbering process
Product features
- The main axis adopts a hollow shaft, so cooling oil can be injected anytime during operation to cool down the axis and the saw blade.
- The yield rate of lumber is excellent because the saw blade is thin.
- To operate feeding speed freely, an inverter is adopted. It electrically controls the load by cutting amount and protects the main motor and the saw.
- The frame is structured of steel plate rather than molded form. Therefore, it has an excellent durability. Furthermore, the caterpillar slide is automatically supplied with air and oil so it extends the lifecycle of the caterpillar.
- The contact area of the caterpillar is manufactured with MC guide and of brass. Therefore, transporting the caterpillar is smooth.

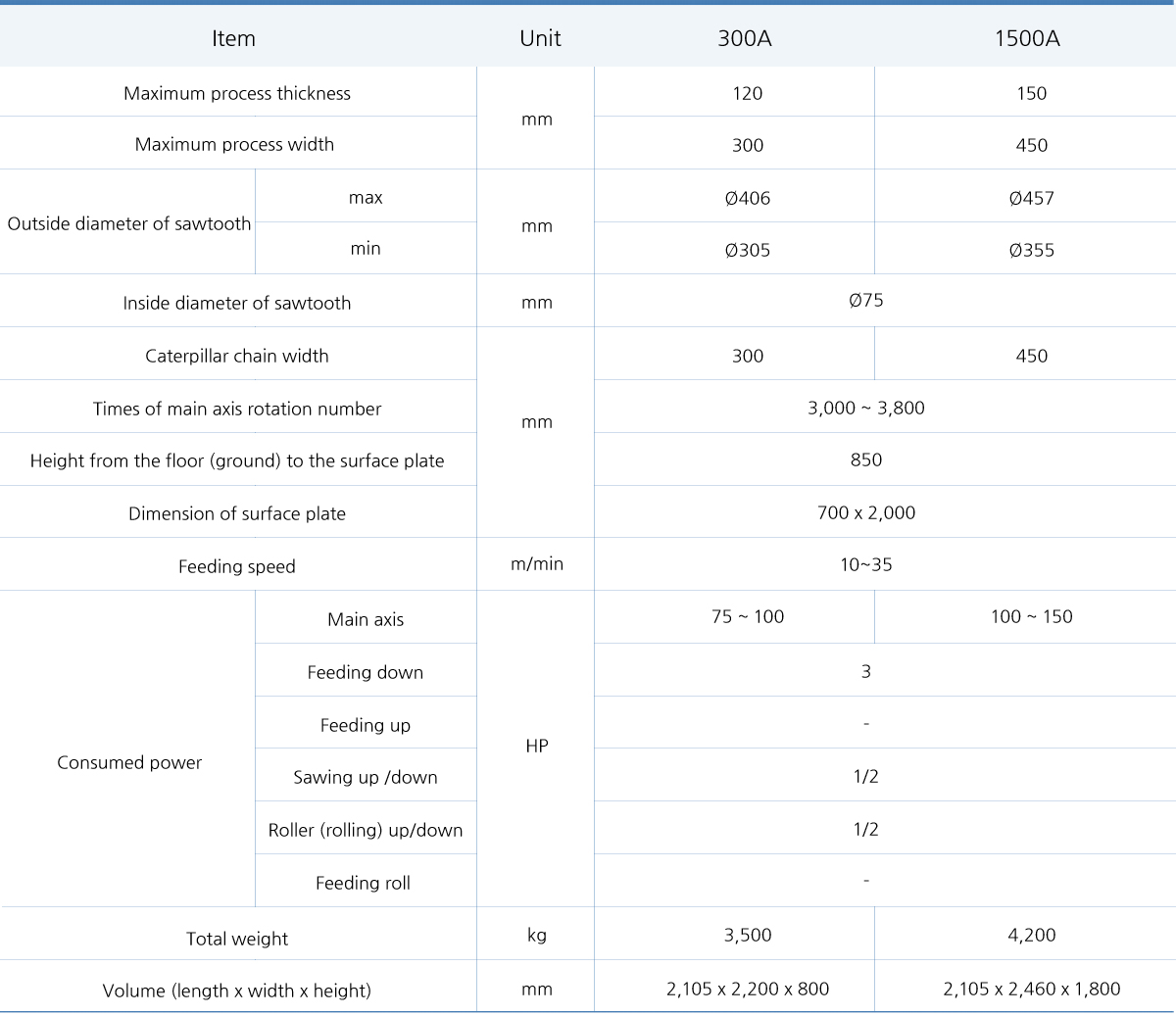

Specification
* The design and specification of this product are subject to change without a prior notice for the purpose of further improvement of quality.
