- Anyone can control this machine without difficulty, so it saves labor cost.
A single (straight) forward travel saves time taken for lumbering to a great extent and the saw enables to tailor wood to a plate lumber (board) and a square lumber in a desired size.

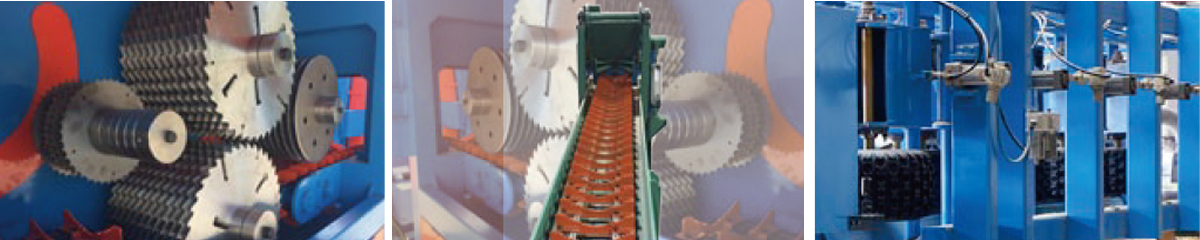

- The circular saw has two fixed axes (upper and lower) and is designed to reduce the load on the circular saw enough to prevent the saw blade from deforming by heat, and to help discharge sawdust well.
- The main axis (spindle) adopts a hollow shaft, so cooling oil can be injected anytime during operation to cool down the axis and the saw blade.
- The yield rate of lumber is excellent because the saw blade is thin.
Specification
Log processing diameter
Log processing length
Upper and lower saw diameter
Feeding speed
Spindle motor
Feeding motor
250D
120~250mm
1,000~3,500mm
Ø400mm
5~20m/min
50HP,60HP
3HP
350D
150~350mm
1,800~4,500mm
Ø520mm
5~15m/min
100HP,120HP
5HP
400D
200~400mm
1,800~4,500mm
Ø570mm
5~15m/min
120HP,150HP
5HP
* The design and specification of this product are subject to change without a prior notice for the purpose of further improvement of quality.
* The space between the heads can be customized according to an order.
Option
wood-feeding (left and right) portable conveyor

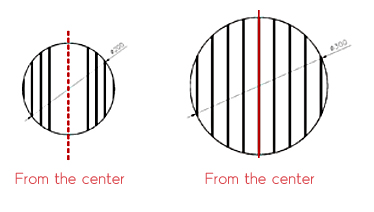

To increase the yield rate of lumber, a wood-feeding conveyor, which can move to the right and left, cuts wood on one side, not the center.
Specification of the option
Left/right travel distance
Driving method
Feeding speed
Feeding motor
50mm/each direction
hydraulic cylinder
5~15 m/min
2HP
Characteristics of the option
- It can feed wood on its one side as the conveyor moves by 50mm to either right or left.
- This equipment maximizes the production of lumber.
- The hydraulic cylinder enables accurate control and an independent control panel is provided for user’s convenience.
- Because it is easy to operate, everyone can use it.
