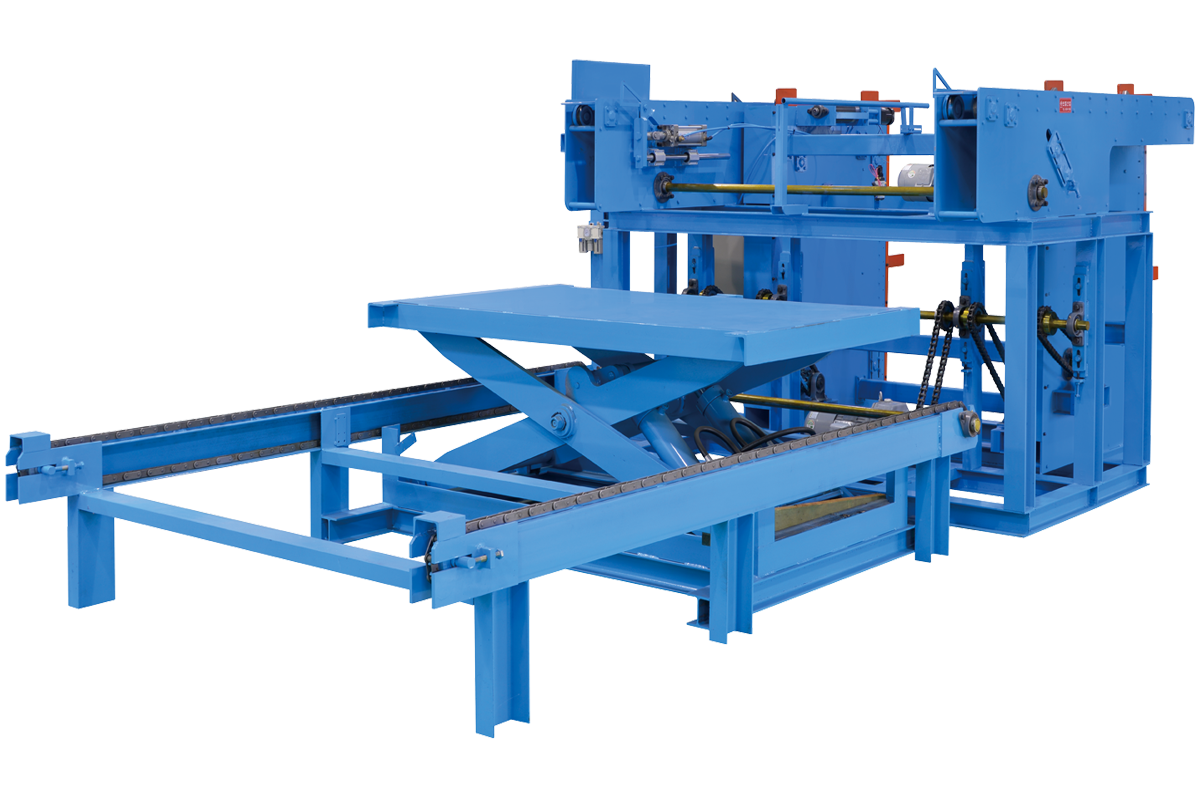

Product features

  • - It doesn’t’ require a standby time for the guided discharging unit, but can work continually and seamlessly.
  • - No need for a standby time for the guided discharging unit increase loading amount 1.5 times as much as the existing methods.
  • - It doesn’t require an engineering work to install a lift. Therefore, it is easy to install and relocate it.
  • - A diagonal and bending product can be cut without operator present (unmanned work).

Specification

    • Possible loading length
    • Vertical guide
    • Lift
    • Vertical loading driving motor
    • A-frame driving motor
    • Discharging chain conveyor
    • 2,400~3,600mm
    • 5Set
    • 5Ton
    • 2HP×1/40 Break
    • 1HP×1/30 Break
    • 2Line×3M
  • * The design and specification of this product are subject to change without a prior notice for the purpose of further improvement of quality.
